UP/DOWN LINEAR LIGHT

UP/DOWN LINEAR LIGHT

The FGE-LSA Series Up/Down Linear Light is a stylish and versatile lighting solution designed for offices, commercial spaces, meeting rooms, and architectural interiors. Featuring a dual-emission design, it provides both direct and indirect lighting, creating balanced brightness and a comfortable visual environment.

The FGE-LSA Series Up/Down Linear Light is a stylish and versatile lighting solution designed for offices, commercial spaces, meeting rooms, and architectural interiors. Featuring a dual-emission design, it provides both direct and indirect lighting, creating balanced brightness and a comfortable visual environment.

Gallery image 1

Gallery image 1

Gallery image 1

TECHNICAL PARAMETERS

FEATURES

Wattage Selectable

Multi-wattage options in a single fixture for flexible applications and reduced inventory.

CCTS Tunable

Adjustable colortemperature to suit diverse environments.

High Efficacy & Energy Saving

Up to 130 lm/W, reducing energy consumption by over 60% compared with HID fixtures.

Smart control Ready

Compatible with 0-10V / DALI dimming, optional microwave/infrared sensor, and emergency kit.

Reliable Warranty

5 Years Warranty.

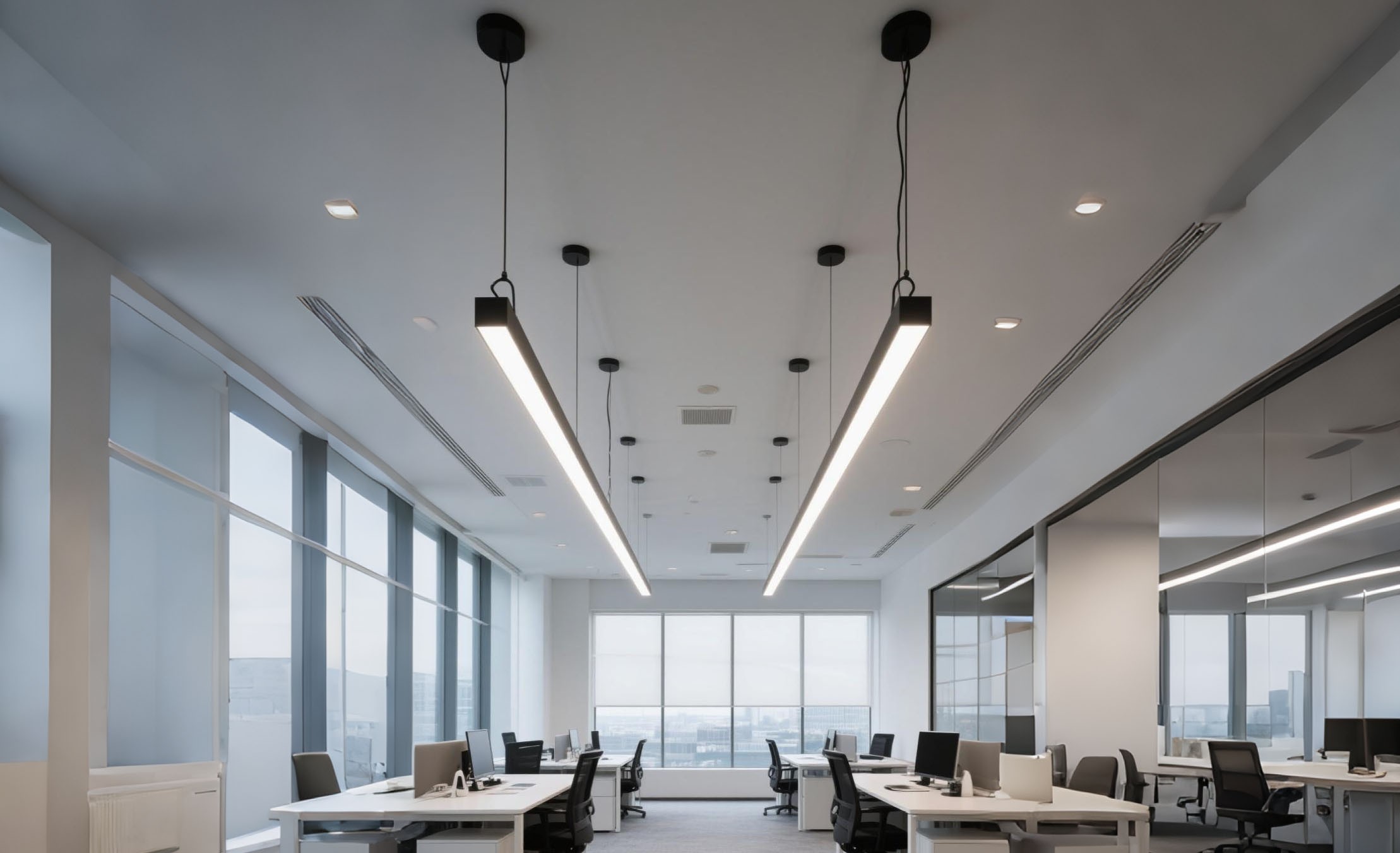

LSA UP/DOWN linear light installed in modern office ceiling with seamless cascading connection

Seamless connection up to 600W

Easy installation, unified power supply, and flexible expansion for large-space lighting.

Motion Sensor Option

Provides smart lighting control to improve energy efficiency and convenience.

The microwave sensor to achieve tri-level dimming control, for same areas that require a light change notice before switch off.

If offers 3 levels of the light Control : 100%-dimming light (0,10%,30%,50%)--off;and 2 periods of selectable waiting time: motion hold-time and stand-by time, Selectable daylight threshold and choice of detection area.

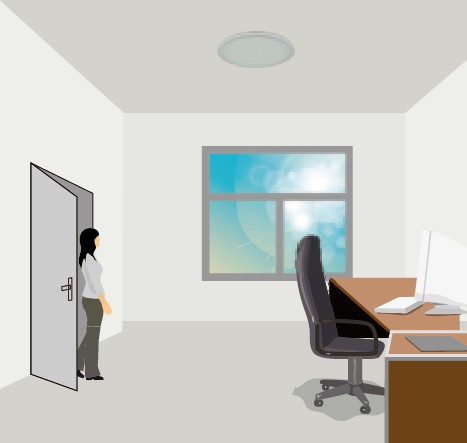

Daylight harvesting diagram for LSA linear light, light stays off with enough natural daylight

When natural light is sufficient, the light will not turn on even when presence is detected.

Microwave motion sensor diagram for LSA UP/DOWN linear light, light activates when person enters room

When natural light is insufficient, the sensor automatically turns on the light when a person enters the room.

LSA linear light sensor standby dimming illustration, adjustable 0/10/30/50% brightness after people leave

After a person leaves, the light dims to a standby level of 0/10%/30%/50% (selectable options) once the hold time expires.

Auto shut-off process diagram of LSA two-way linear light motion sensor

The light automatically turns off once the standby time has elapsed.

LSA UP/DOWN linear light flexible multi-shape installation in modern office, customizable connection layout

Flexible Configurations

As many as eight fixtures can be linked together on one power source, and all shaped fixtures feature uniform lighting that eliminates hot spots. It empowers users through customization and personalization.

I-shape

I-shape

I-shape

I-shape

I-shape

I-shape

Multiple Mounting Options

They offer ultimate flexibility for installation in any environment or application.

Pendant

Wall Mount

Surface Mounted

Recessed

Adjustable Light Distributions

It delivers precise, efficient, and adaptive lighting by directing light exactly where and when it's needed.

Uplight: 30%

Downlight: 70%

Uplight: 10%

Downlight: 90%

Uplight: 0%

Downlight: 100%

LSA UP/DOWN linear light installed in modern office ceiling with seamless cascading connection

Seamless connection up to 600W

Easy installation, unified power supply, and flexible expansion for large-space lighting.

Motion Sensor Option

Provides smart lighting control to improve energy efficiency and convenience.

The microwave sensor to achieve tri-level dimming control, for same areas that require a light change notice before switch off.

If offers 3 levels of the light Control : 100%-dimming light (0,10%,30%,50%)--off;and 2 periods of selectable waiting time: motion hold-time and stand-by time, Selectable daylight threshold and choice of detection area.

Daylight harvesting diagram for LSA linear light, light stays off with enough natural daylight

When natural light is sufficient, the light will not turn on even when presence is detected.

Microwave motion sensor diagram for LSA UP/DOWN linear light, light activates when person enters room

When natural light is insufficient, the sensor automatically turns on the light when a person enters the room.

LSA linear light sensor standby dimming illustration, adjustable 0/10/30/50% brightness after people leave

After a person leaves, the light dims to a standby level of 0/10%/30%/50% (selectable options) once the hold time expires.

Auto shut-off process diagram of LSA two-way linear light motion sensor

The light automatically turns off once the standby time has elapsed.

LSA UP/DOWN linear light flexible multi-shape installation in modern office, customizable connection layout

Flexible Configurations

As many as eight fixtures can be linked together on one power source, and all shaped fixtures feature uniform lighting that eliminates hot spots. It empowers users through customization and personalization.

I-shape

I-shape

I-shape

I-shape

I-shape

I-shape

Multiple Mounting Options

They offer ultimate flexibility for installation in any environment or application.

Pendant

Wall Mount

Surface Mounted

Recessed

Adjustable Light Distributions

It delivers precise, efficient, and adaptive lighting by directing light exactly where and when it's needed.

Uplight: 30%

Downlight: 70%

Uplight: 10%

Downlight: 90%

Uplight: 0%

Downlight: 100%

LSA UP/DOWN linear light installed in modern office ceiling with seamless cascading connection

Seamless connection up to 600W

Easy installation, unified power supply, and flexible expansion for large-space lighting.

Motion Sensor Option

Provides smart lighting control to improve energy efficiency and convenience.

The microwave sensor to achieve tri-level dimming control, for same areas that require a light change notice before switch off.

If offers 3 levels of the light Control : 100%-dimming light (0,10%,30%,50%)--off;and 2 periods of selectable waiting time: motion hold-time and stand-by time, Selectable daylight threshold and choice of detection area.

Daylight harvesting diagram for LSA linear light, light stays off with enough natural daylight

When natural light is sufficient, the light will not turn on even when presence is detected.

Microwave motion sensor diagram for LSA UP/DOWN linear light, light activates when person enters room

When natural light is insufficient, the sensor automatically turns on the light when a person enters the room.

LSA linear light sensor standby dimming illustration, adjustable 0/10/30/50% brightness after people leave

After a person leaves, the light dims to a standby level of 0/10%/30%/50% (selectable options) once the hold time expires.

Auto shut-off process diagram of LSA two-way linear light motion sensor

The light automatically turns off once the standby time has elapsed.

LSA UP/DOWN linear light flexible multi-shape installation in modern office, customizable connection layout

Flexible Configurations

As many as eight fixtures can be linked together on one power source, and all shaped fixtures feature uniform lighting that eliminates hot spots. It empowers users through customization and personalization.

I-shape

I-shape

I-shape

I-shape

I-shape

I-shape

Multiple Mounting Options

They offer ultimate flexibility for installation in any environment or application.

Pendant

Wall Mount

Surface Mounted

Recessed

Adjustable Light Distributions

It delivers precise, efficient, and adaptive lighting by directing light exactly where and when it's needed.

Uplight: 30%

Downlight: 70%

Uplight: 10%

Downlight: 90%

Uplight: 0%

Downlight: 100%

TECHNICAL PARAMETERS

Product Model	LSA-40W	LSA-50	LSA-100W
Length	2ft	4ft	8ft
Wattage Selectable	40W/30W/25W/20W/15W	50W/40W/35W/30W/25W	100W/80W/70W/60W/50W
Input Voltage	AC120-277V	AC120-277V	AC120-277V
Luminous Efficacy	130lm/W	130lm/W	130lm/W
Wattage Selectable	5200lm/3900lm/3250lm/2600lm/1950lm	6500lm/5200lm/4550lm/3900lm/3250lm	13000lm/10400lm/9100lm/7800lm/6500lm
CCT Selectable	3500K/4000K/5000K/5700K/6500K	3500K/4000K/5000K/5700K/6500K	3500K/4000K/5000K/5700K/6500K
CRI	Ra>80	Ra>80	Ra>80
Beam Angle	90°	90°	90°
Ingress Protection	IP20	IP20	IP20
Impact Resistance	IK08	IK08	IK08
Net Weight	1.2kg	2.1kg	3.6kg
Dimensions	575x69x80mm	1203x69x80mm	2400x69x80mm

IES

FGE-LSA-4FT-50WTCP35K.ies

FGE-LSA-4FT-50WTCP35K.ies

FGE-LSA-4FT-50WTCP40K.ies

FGE-LSA-4FT-50WTCP40K.ies

FGE-LSA-4FT-50WTCP50K.ies

FGE-LSA-4FT-50WTCP50K.ies

FGE-LSA-4FT-50WTCP57K.ies

FGE-LSA-4FT-50WTCP57K.ies

FGE-LSA-4FT-50WTCP65K.ies

FGE-LSA-4FT-50WTCP65K.ies

Polar light distribution graph of LSA UP/DOWN LINEAR LIGHT, 90° beam angle candela distribution curve

Distance vs illuminance plot for LSA UP/DOWN LINEAR LIGHT, 90° beam, lux and fc data

Iso-lux contour map of LSA UP/DOWN LINEAR LIGHT, 90° beam, 3m installation height illuminance distribution

Accessories

Linear light I-shaped straight connector accessory for LSA UP/DOWN LINEAR LIGHT

I joiner

Linear light L-shaped 90-degree corner joiner for LSA UP/DOWN LINEAR LIGHT

L joiner

Linear light T-shaped three-way splice joiner for LSA UP/DOWN LINEAR LIGHT

T joiner

Linear light X-shaped four-way cross joiner for LSA UP/DOWN LINEAR LIGHT

X joiner

60-degree V-angle joiner fitting for LSA UP/DOWN LINEAR LIGHT linear lamp

60° V joiner

120-degree V-angle joiner connector for LSA UP/DOWN LINEAR LIGHT

120° V joiner

Y-shaped three-way diverging joiner for LSA UP/DOWN LINEAR LIGHT

Y joiner

Surface flush mounting bracket kits for LSA UP/DOWN LINEAR LIGHT

Surface-mounted Kits

Type 1 wall surface mounting hardware kits for LSA UP/DOWN LINEAR LIGHT

Wall-mounted Kits 1

Type 2 wall mounting bracket accessories for LSA UP/DOWN LINEAR LIGHT

Wall-mounted Kits 2

Rollable soft diffuser lens accessory for LSA UP/DOWN LINEAR LIGHT

Roll-out Lens

Pre-assembled T-bar ceiling grid mounting clips for LSA UP/DOWN LINEAR LIGHT

Assembled T-Grid Cllips

Electrical conduit pipe fixed mounting kits for LSA UP/DOWN LINEAR LIGHT

Conduit-mounted Kits

Steel wire aircraft suspension cable hanging kit for LSA UP/DOWN LINEAR LIGHT

Aircraft Cable

Sensor installation canopy cover accessory for LSA UP/DOWN LINEAR LIGHT

Emergency Driver

Sensor installation canopy cover accessory for LSA UP/DOWN LINEAR LIGHT

Canopy (for Sensor)

End cap with built-in Wisensor sensor for LSA UP/DOWN LINEAR LIGHT

End Cap Wisensor

Black color suspension canopy fitting LSA-DWC-CNPY-BL for linear light

LSA-DWC-CNPY-BL

White color suspension canopy fitting LSA-DWC-CNPY-WH for linear light

LSA-DWC-CNPY-WH

Recessed concealed ceiling mounting kits for LSA UP/DOWN LINEAR LIGHT

Recessed Mounting Kits
