The FGE-HBUE Series High Bay is UL-listed for wet locations, featuring long-life, high-efficiency surface-mount LEDs with a 100,000-hour lifespan, backed by IES LM-80 results and TM-21 calculations for reliable performance in demanding environments.

The FGE-HBUE Series High Bay is UL-listed for wet locations, featuring long-life, high-efficiency surface-mount LEDs with a 100,000-hour lifespan, backed by IES LM-80 results and TM-21 calculations for reliable performance in demanding environments.

Gallery image 1
Thumbnail 1
Thumbnail 2
Thumbnail 3
Gallery image 1
Thumbnail 1
Thumbnail 2
Thumbnail 3
Gallery image 1
Thumbnail 1
Thumbnail 2
Thumbnail 3

FEATURES

Wattage Selectable

Multi-wattage options in a single fixture for flexible applications and reduced inventory.

High Efficacy & Energy Saving

Up to 150 lm/W, reducing energy consumption by over 60% compared with HID fixtures.

Smart control Ready

Compatible with 0-10V / DALI dimming, optional microwave/infrared sensor, and emergency kit.

Reliable Warranty

5 Years Warranty.

HBUE UFO high bay light IP65 waterproof dustproof IK08 impact resistant industrial lighting

Robust Protection

IP65 waterproof & dustproof, IK08 impact resistance for harsh industrial environments.

HBUE UFO LED high bay ADC12 die cast aluminum heat sink thermal management design

Superior Thermal Management

ADC12 die-cast aluminum housing with optimized heat sink for reliable performance.

HBUE UFO high bay light IP65 waterproof dustproof IK08 impact resistant industrial lighting

Robust Protection

IP65 waterproof & dustproof, IK08 impact resistance for harsh industrial environments.

HBUE UFO LED high bay ADC12 die cast aluminum heat sink thermal management design

Superior Thermal Management

ADC12 die-cast aluminum housing with optimized heat sink for reliable performance.

HBUE UFO high bay light IP65 waterproof dustproof IK08 impact resistant industrial lighting

Robust Protection

IP65 waterproof & dustproof, IK08 impact resistance for harsh industrial environments.

HBUE UFO LED high bay ADC12 die cast aluminum heat sink thermal management design

Superior Thermal Management

ADC12 die-cast aluminum housing with optimized heat sink for reliable performance.

TECHNICAL PARAMETERS

Product Model

HBUE-100W

HBUE-150W

HBUE-200W

HBUE-240W

Wattage Selectable

100W/80W/50W

150W/100W/80W

200W/150W/100W

240W/200W/150W

Input Voltage

AC120–277V

AC120–277V

AC120–277V

AC120–277V

Luminous Efficacy

150lm/W

150lm/W

150lm/W

150lm/W

Wattage Selectable

15000lm/12000lm/7500lm

22500lm/15000lm/12000lm

30000lm/22500lm/15000lm

36000lm/30000lm/22500lm

CCT

5000K

5000K

5000K

5000K

CRI

Ra>70

Ra>70

Ra>70

Ra>70

Beam Angle

60°/90°/110°

60°/90°/110°

60°/90°/110°

60°/90°/110°

Ingress Protection

IP65

IP65

IP65

IP65

Impact Resistance

IK08

IK08

IK08

IK08

Net Weight

1.5Kg

1.5Kg

1.8Kg

2.1Kg

Dimensions

Φ246mmx133mm

Φ246mmx133mm

Φ288mmx133mm

Φ329mmx137mm

IES

FGE-HBUE-100W50K-D.ies

FGE-HBUE-150W50K-D.ies

FGE-HBUE-200W50K-D-90Deg.ies

FGE-HBUE-200W50K-D.ies

HBUE2-150W-5000K-110deg-150lm.ies

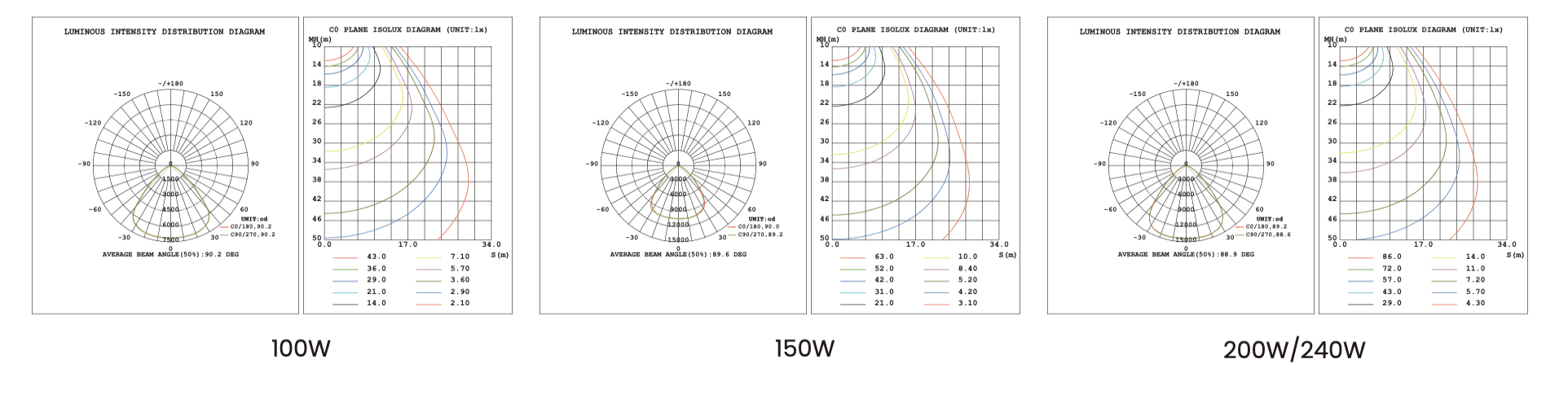

HBUE UFO high bay light 100W 150W 200W 240W luminous intensity polar curve & illuminance distribution chart
