SEMI CUT-OFF WALL PACK

SEMI CUT-OFF WALL PACK

The FGE-WPT Series Semi Cut-off Wall Pack is designed for building exteriors, walkways, parking areas, and perimeter lighting, offering reliable performance and energy efficiency for outdoor applications. Equipped with high-efficacy LED chips and precision optical lenses, it delivers up to 140 lm/W of bright, uniform illumination while reducing glare and light spill.

The FGE-WPT Series Semi Cut-off Wall Pack is designed for building exteriors, walkways, parking areas, and perimeter lighting, offering reliable performance and energy efficiency for outdoor applications. Equipped with high-efficacy LED chips and precision optical lenses, it delivers up to 140 lm/W of bright, uniform illumination while reducing glare and light spill.

Gallery image 1
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Gallery image 1
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Gallery image 1
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4

FEATURES

Wattage Selectable

Multi-wattage options in a single fixture for flexible applications and reduced inventory.

CCTS Tunable

Adjustable colortemperature to suit diverse environments.

High Efficacy & Energy Saving

Up to 140 lm/W, reducing energy consumption by over 60% compared with HID fixtures.

Smart control Ready

Compatible with 0-10V / DALI dimming, optional microwave/infrared sensor, and emergency kit.

Reliable Warranty

5 / 7 / 10 Years Warranty Options.

Dusk to Dawn Sensor

Automatically turns lights on at dusk and off at dawn for energy savings, convenience, and extended lifespan.

WPT semi cut-off wall pack unlit, installed on concrete wall, dusk to dawn off state demonstration

Automatic Off At Dawn

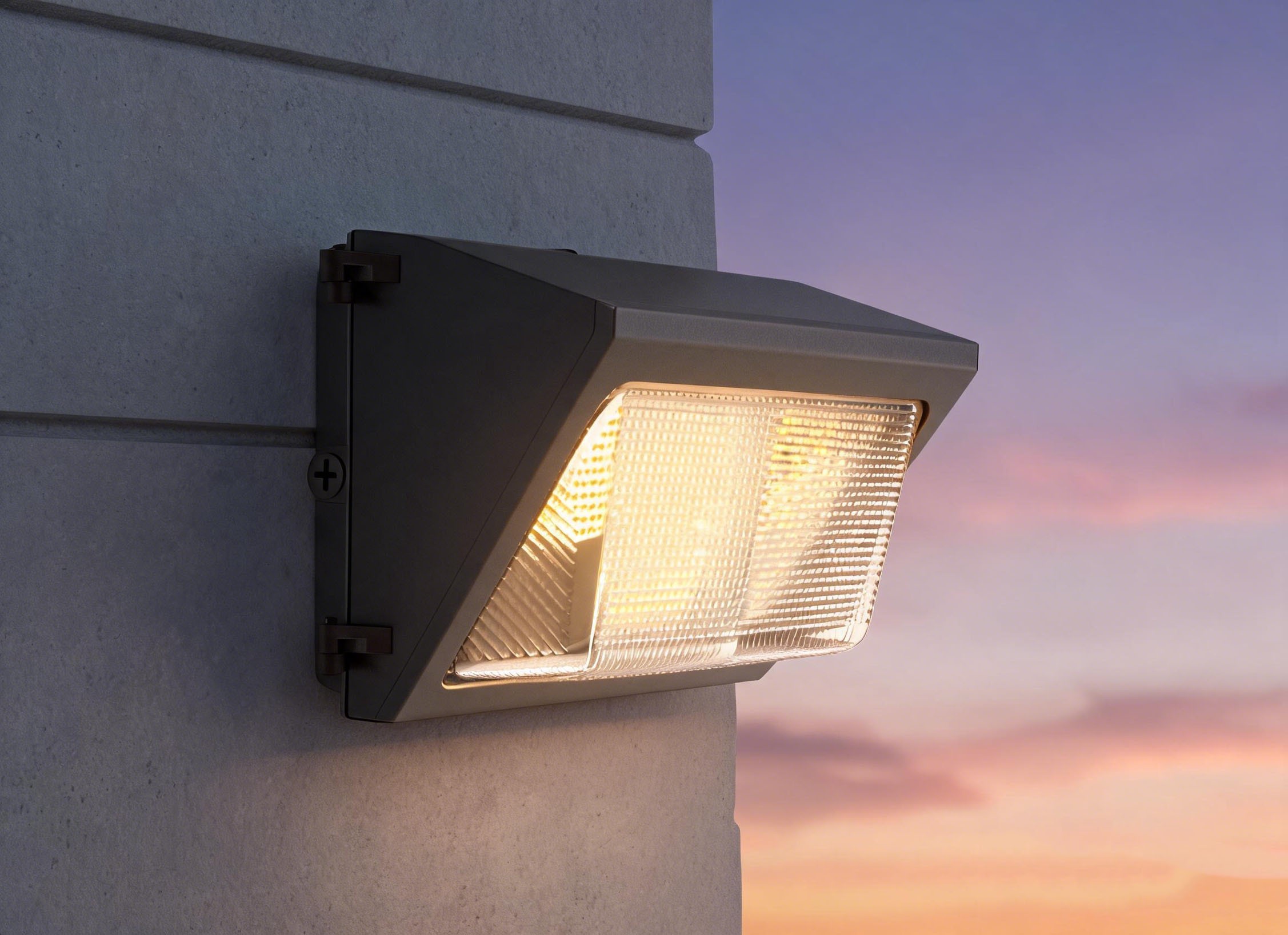

WPT semi cut-off wall pack illuminated, mounted on concrete wall, dusk to dawn on state demonstration

Automatic On At Dusk

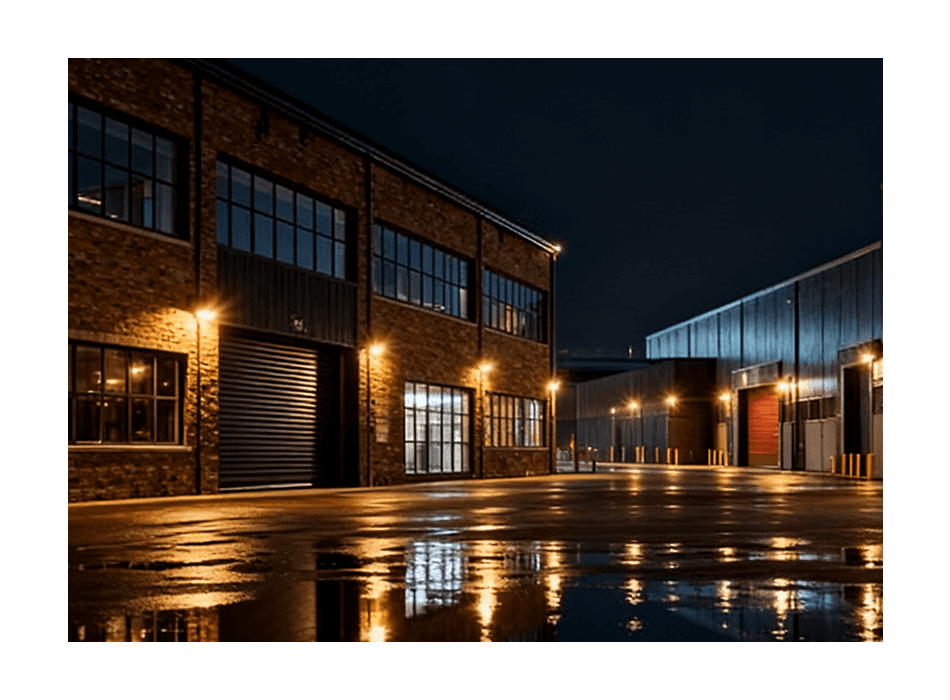

WPT semi cut-off wall pack application banner, industrial warehouse night scene, text Easy Installation and Maintenance

Easy Installation and Maintenance

Reduce installation time and maintenance labor, effectively lowering overall operational costs.

Dusk to Dawn Sensor

Automatically turns lights on at dusk and off at dawn for energy savings, convenience, and extended lifespan.

WPT semi cut-off wall pack unlit, installed on concrete wall, dusk to dawn off state demonstration

Automatic Off At Dawn

WPT semi cut-off wall pack illuminated, mounted on concrete wall, dusk to dawn on state demonstration

Automatic On At Dusk

WPT semi cut-off wall pack application banner, industrial warehouse night scene, text Easy Installation and Maintenance

Easy Installation and Maintenance

Reduce installation time and maintenance labor, effectively lowering overall operational costs.

Dusk to Dawn Sensor

Automatically turns lights on at dusk and off at dawn for energy savings, convenience, and extended lifespan.

WPT semi cut-off wall pack unlit, installed on concrete wall, dusk to dawn off state demonstration

Automatic Off At Dawn

WPT semi cut-off wall pack illuminated, mounted on concrete wall, dusk to dawn on state demonstration

Automatic On At Dusk

WPT semi cut-off wall pack application banner, industrial warehouse night scene, text Easy Installation and Maintenance

Easy Installation and Maintenance

Reduce installation time and maintenance labor, effectively lowering overall operational costs.

TECHNICAL PARAMETERS

Product Model

WPT-80W

WPT-120W

Wattage Selectable

80W/60W/40W

120W/100W/90W

Input Voltage

AC120-277V

AC120-277V

Luminous Efficacy

140lm/W

140lm/W

Wattage Selectable

11200lm/8400lm/5600lm

16800lm/14000lm/12600lm

CCT Selectable

3000K/4000K/5000K

3000K/4000K/5000K

CRI

Ra>70

Ra>70

Beam Angle

100°

100°

Ingress Protection

IP65

IP65

Impact Resistance

IK06

IK06

Net Weight

4.1kg

4.52kg

Dimensions

360.8x235.5x185.7mm

360.8x235.5x185.7mm

IES

FGE-WPT-40W30K.ies

FGE-WPT-40W40K.ies

FGE-WPT-40W50K.ies

FGE-WPT-60W30K.ies

FGE-WPT-60W40K.ies

FGE-WPT-60W50K.ies

FGE-WPT-80W30K.ies

FGE-WPT-80W40K.ies

FGE-WPT-80W50K.ies

FGE-WPT-100W30K.ies

FGE-WPT-100W40K.ies

FGE-WPT-100W50K.ies

FGE-WPT-120W30K.ies

FGE-WPT-120W40K.ies

FGE-WPT-120W50K.ies

WPT semi cut-off wall pack photometric data chart, 80W and 120W 5000K luminous intensity distribution and iso-lux diagrams

Accessories

WPT wall pack installation accessories, four mounting stainless steel screws

4 Pcs Screws

WPT wall pack accessories, five brown plastic wire connector nuts

5 PCS Vire Nuts

WPT wall pack accessory, circular black sealing foam gasket

1 Pcs foam

WPT wall pack dusk to dawn photosensor component, light sensing module

Photosensor

WPT wall pack optional antenna module ANT-5-4T, ANT-6-4T

ANT-5-4T ANT-6-4T

Customizable ANT-5-16B-3 cable gland antenna assembly for WPT wall pack

ANT-5-16B-3 (Customize)
