PB

PB

PANEL LIGHT

PANEL LIGHT

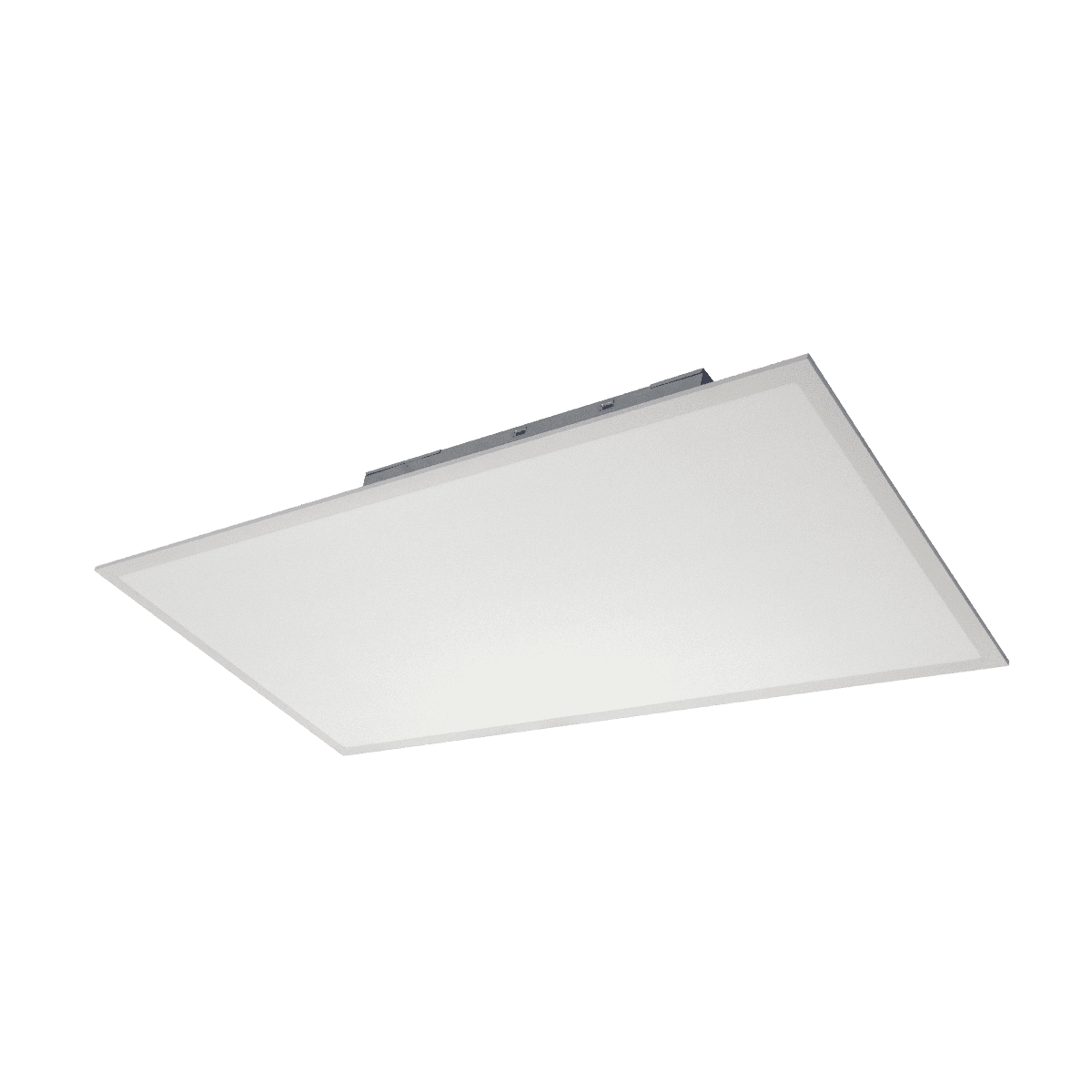

The FGE-PB Series Panel Light is designed to deliver high-efficiency, uniform, and glare-free illumination for offices, schools, hospitals, and commercial buildings. Utilizing premium LED chips and an optical diffuser plate, it achieves up to 130 lm/W or 140 lm/W, ensuring bright yet comfortable lighting for professional indoor environments.

The FGE-PB Series Panel Light is designed to deliver high-efficiency, uniform, and glare-free illumination for offices, schools, hospitals, and commercial buildings. Utilizing premium LED chips and an optical diffuser plate, it achieves up to 130 lm/W or 140 lm/W, ensuring bright yet comfortable lighting for professional indoor environments.

Gallery image 1
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
Gallery image 1
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
Gallery image 1
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5

FEATURES

Wattage Selectable

Multi-wattage options in a single fixture for flexible applications and reduced inventory.

CCTS Tunable

Adjustable colortemperature to suit diverse environments.

High Efficacy & Energy Saving

Up to 130 lm/W or 140 lm/W, reducing energy consumption by over 60% compared with HID fixtures.

Smart control Ready

Compatible with 0-10V / DALI dimming, optional microwave/infrared sensor, and emergency kit.

Reliable Warranty

5 Years Warranty.

Modern glass partition office interior, Easy Installation and Maintenance feature banner for LED panel lights

Easy Installation and Maintenance

Reduce installation time and maintenance labor, effectively lowering overall operational costs.

90 Minutes EM Back-up Options

Ensuring safety and visibility during critical moments.

90 minutes LED emergency backup driver, orange emergency power pack with flexible metal conduit for LED panel light
LED emergency driver pre-assembled on rear side of square LED panel light, installation display
Modern glass partition office interior, Easy Installation and Maintenance feature banner for LED panel lights

Easy Installation and Maintenance

Reduce installation time and maintenance labor, effectively lowering overall operational costs.

90 Minutes EM Back-up Options

Ensuring safety and visibility during critical moments.

90 minutes LED emergency backup driver, orange emergency power pack with flexible metal conduit for LED panel light
LED emergency driver pre-assembled on rear side of square LED panel light, installation display
Modern glass partition office interior, Easy Installation and Maintenance feature banner for LED panel lights

Easy Installation and Maintenance

Reduce installation time and maintenance labor, effectively lowering overall operational costs.

90 Minutes EM Back-up Options

Ensuring safety and visibility during critical moments.

90 minutes LED emergency backup driver, orange emergency power pack with flexible metal conduit for LED panel light
LED emergency driver pre-assembled on rear side of square LED panel light, installation display

TECHNICAL PARAMETERS

Product Model

PB14-40W

PB22-40W

PB24-50W

Length

1x4’

2x2’

2x4’

Wattage Selectable

40W/30W/20W

40W/30W/20W

50W/40W/30W

Input Voltage

AC120-277V

AC120-277V

AC120-277V

Luminous Efficacy

130lm/W

140lm/W

130lm/W

140lm/W

130lm/W

140lm/W

Wattage Selectable

5200lm/3900lm/2600lm

5600lm/4200lm/2800lm

5200lm/3900lm/2600lm

5600lm/4200lm/2800lm

6250lm/5000lm/3750lm

7000lm/5600lm/4200lm

CCT Selectable

3500K/4000K/5000K

3500K/4000K/5000K

3500K/4000K/5000K

CRI

Ra>80

Ra>80

Ra>80

Beam Angle

120°

120°

120°

Ingress Protection

IP20

IP20

IP20

Impact Resistance

IK04

IK04

IK04

Net Weight

2.06kg

2.16kg

3.76kg

Dimensions

1212x301x29.72mm

603x603x29.72mm

1212x603x29.72mm

IES

FGE-PB22-40W35K.ies

FGE-PB22-40W40K.ies

FGE-PB22-40W50K.ies

FGE-PB24-50W35K.ies

FGE-PB24-50W40K.ies

FGE-PB24-50W50K.ies

LED panel light polar light distribution diagram, 120° beam angle
Illuminance at a distance chart of LED panel light, 120° beam angle
Iso-lux iso-illuminance contour diagram, mounting height 3.0m for LED panel light

Accessories

Motion sensor accessory for PB LED panel light

Motion Sensor

90 minutes EM emergency backup power accessory for LED panel light

90 Minutes EM Back-up
