The FGE-HBF Series NSF High Bay is a high-performance LED luminaire engineered for food processing areas, cleanrooms, and other environments requiring strict hygiene control. Its NSF-certified design features a smooth, seamless housing that prevents dust and bacteria buildup while allowing for easy cleaning and maintenance.

The FGE-HBF Series NSF High Bay is a high-performance LED luminaire engineered for food processing areas, cleanrooms, and other environments requiring strict hygiene control. Its NSF-certified design features a smooth, seamless housing that prevents dust and bacteria buildup while allowing for easy cleaning and maintenance.

Gallery image 1
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
Gallery image 1
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
Gallery image 1
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5

FEATURES

Wattage Selectable

Multi-wattage options in a single fixture for flexible applications and reduced inventory.

High Efficacy & Energy Saving

Up to 150 lm/W, reducing energy consumption by over 60% compared with HID fixtures.

Smart control Ready

Compatible with 0-10V / DALI dimming, optional microwave/infrared sensor, and emergency kit.

Reliable Warranty

5 / 7 / 10 Years Warranty Options.

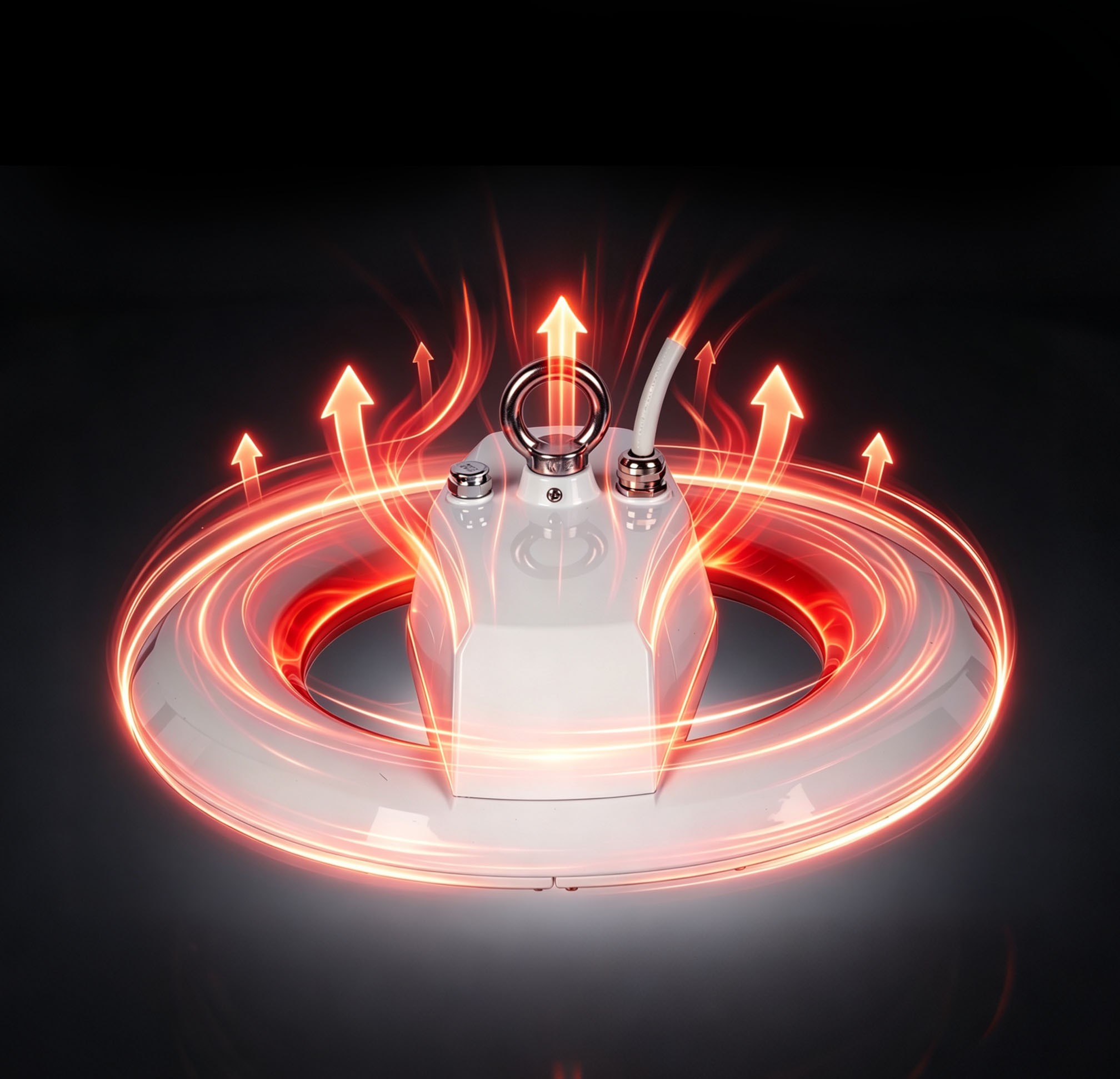

HBF NSF UFO high bay light die cast aluminum heat sink structure, excellent thermal management

Superior Heat Dissipation

Die-cast aluminum housing with optimized heat sink for reliable performance.

Corrosion resistant enclosure for HBF NSF high bay light, durable against rust and chemicals

Corrosion Resistant Housing

Housing: Designed for durability and protection against rust, chemicals, and environmental wear. Warranty Options.

HBF NSF UFO high bay light die cast aluminum heat sink structure, excellent thermal management

Superior Heat Dissipation

Die-cast aluminum housing with optimized heat sink for reliable performance.

Corrosion resistant enclosure for HBF NSF high bay light, durable against rust and chemicals

Corrosion Resistant Housing

Housing: Designed for durability and protection against rust, chemicals, and environmental wear. Warranty Options.

HBF NSF UFO high bay light die cast aluminum heat sink structure, excellent thermal management

Superior Heat Dissipation

Die-cast aluminum housing with optimized heat sink for reliable performance.

Corrosion resistant enclosure for HBF NSF high bay light, durable against rust and chemicals

Corrosion Resistant Housing

Housing: Designed for durability and protection against rust, chemicals, and environmental wear. Warranty Options.

TECHNICAL PARAMETERS

Product Model

HBF-150W

HBF-185W

Wattage

150W/120W/100W Selectable

185W

Input Voltage

AC120-277V

AC120-277V

Luminous Efficacy

150lm/W

150lm/W

Wattage Selectable

22500lm/18000lm/15000lm

27000lm

CCT

5000K

5000K

CRI

Ra>80

Ra>80

Beam Angle

110°

110°

Ingress Protection

IP69K

IP69K

Impact Resistance

IK08

IK08

Net Weight

5.96kg

6.1kg

Dimensions

442x442x190mm

442x442x190mm

IES

FGE-HBF-150W50K.ies

FGE-HBF-185W50K.ies

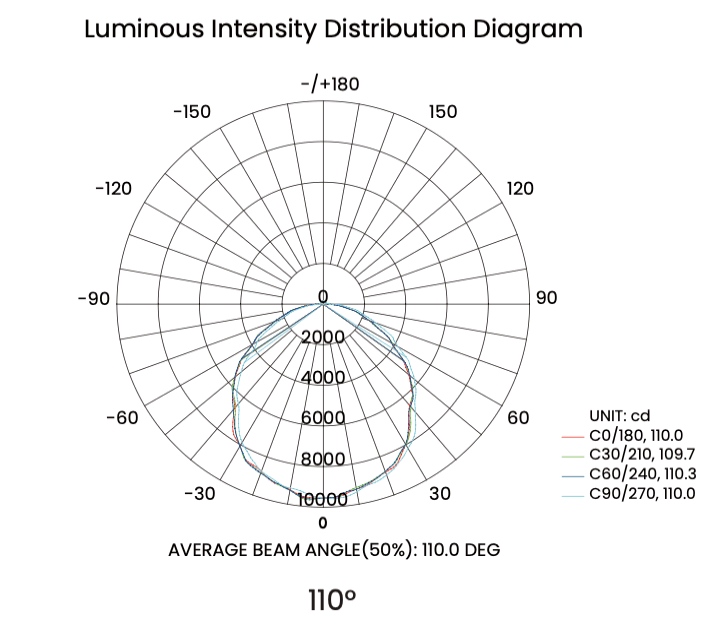

110 degree beam angle polar curve for HBF NSF UFO LED high bay light
Distance illuminance data graph of HBF NSF 110° high bay luminaire
Iso-illuminance contour chart for HBF NSF UFO high bay light

Accessories

HBF NSF high bay light plug and play motion sensor, pluggable occupancy sensor illustration

Plug & Play Motion Sensor

90 Minutes EM back-up module for HBF NSF UFO high bay light, emergency battery installation guide

90 Minutes EM Back-up
