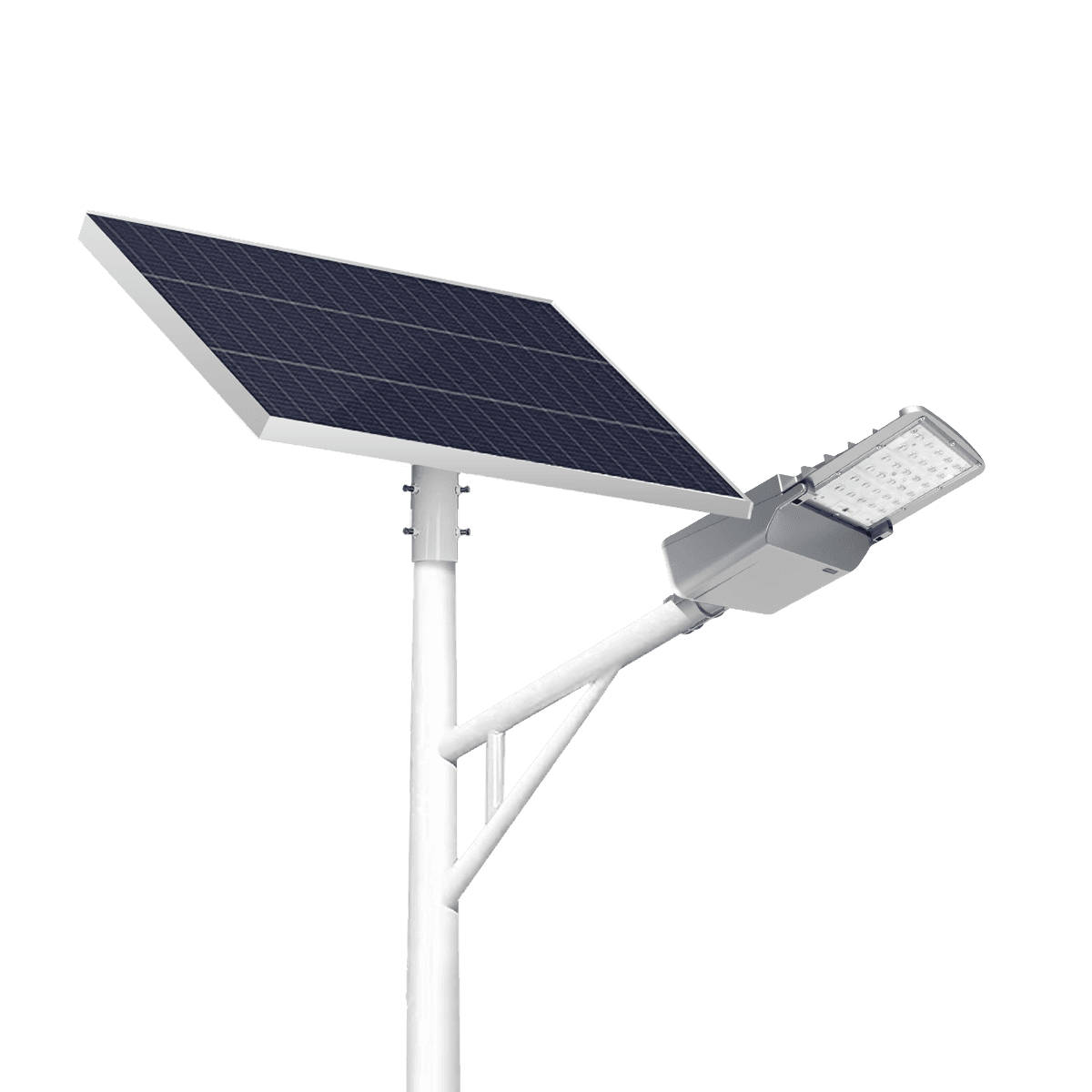

Venus II

ALL IN TWO SOLAR LIGHT

The FGE-Venus II Series All-in-Two Solar Light integrates high-efficiency solar panels, a lithium battery, LED module, and intelligent controller into a compact, streamlined design. It provides powerful, autonomous lighting for streets, pathways, parks, and parking areas without external wiring or grid power.

FEATURES

TECHNICAL PARAMETERS

IES

FEATURES

High Efficacy & Energy Saving

Up to 170 lm/W, reducing energy consumption by over 60% compared with HID fixtures.

Charge Time

Fully charges in 5 hours for dependable emergency readiness.

Discharge Time

Provides up to 24-36h (2-3 nights) of continuous illumination during power failure.

Reliable Warranty

5 Years Warranty.

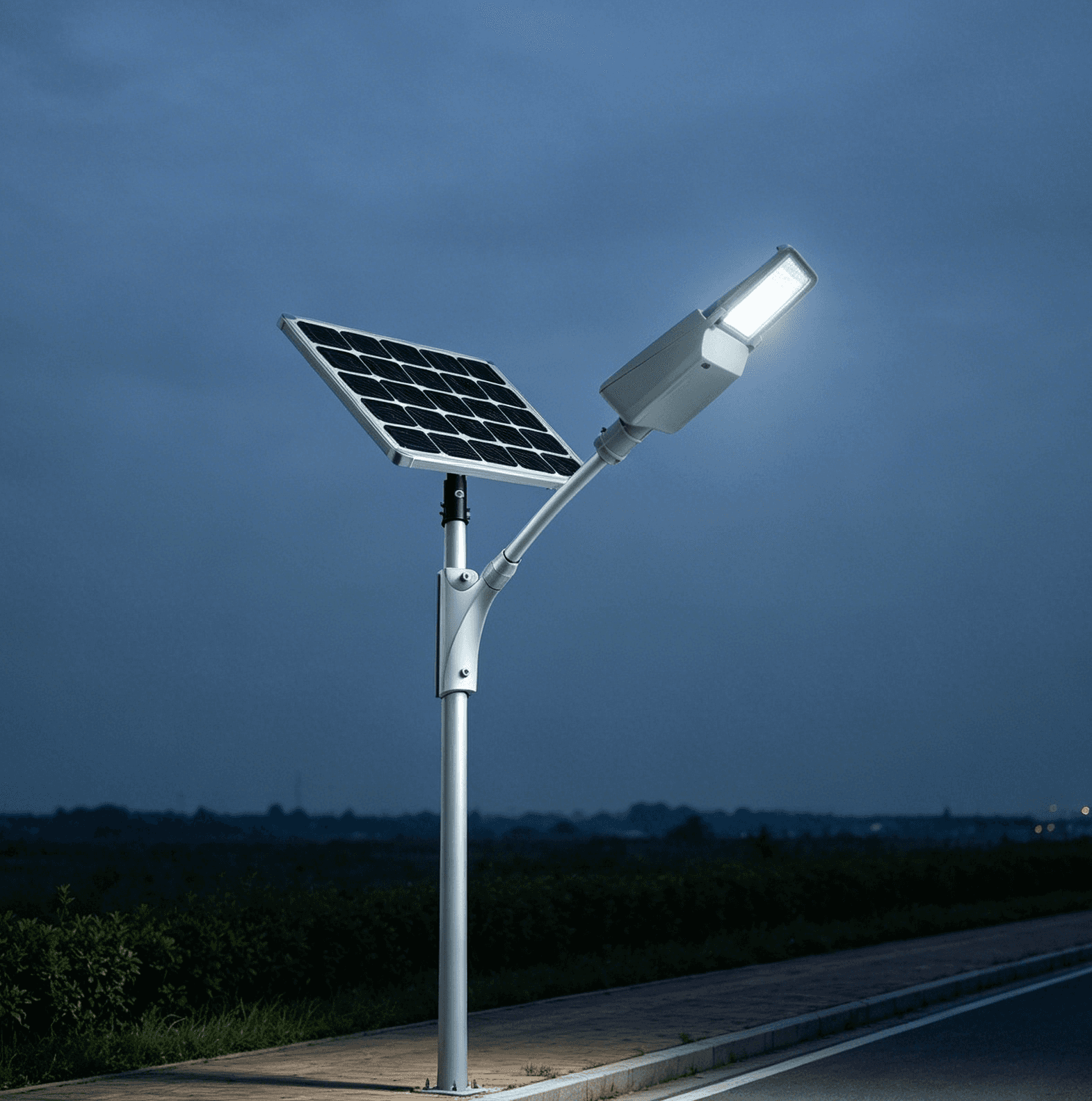

Time Control and Automatic Dimming

Smart time-based dimming for higher efficiency and longer lifespan.

12V/24V MPPT Controller

Intelligent to control the dimming by PIR/Motion sensor and timer.

12V/24V SRNE MPPT solar charge controller with PIR motion sensor, intelligent driver for solar street light timing dimming system

Solar LED street light working in thunderstorm rainy night, 10KV surge protection, IP65 waterproof, IK08 impact resistance outdoor roadway lighting banner

10KV Surge & IP65 Heavy-Duty Protection

It features 10KV surge protection, IP65 waterproof & dustproof and IK08 impact resistance for reliable and safe use in harsh industrial environments.

High Efficiency Solar Panel

Adopting high efficiency monocrystalline silicon

solar panel, conversion rate is more than 21%.

Venus II split solar street light equipped with high efficiency monocrystalline silicon solar panel, conversion efficiency over 21%

Split design

Allows flexible installation and optimal positioning of both solar panel

and light for maximum efficiency and easier maintenance.

All-in-two split design solar street light, separated solar panel and lamp head for flexible installation and easy maintenance

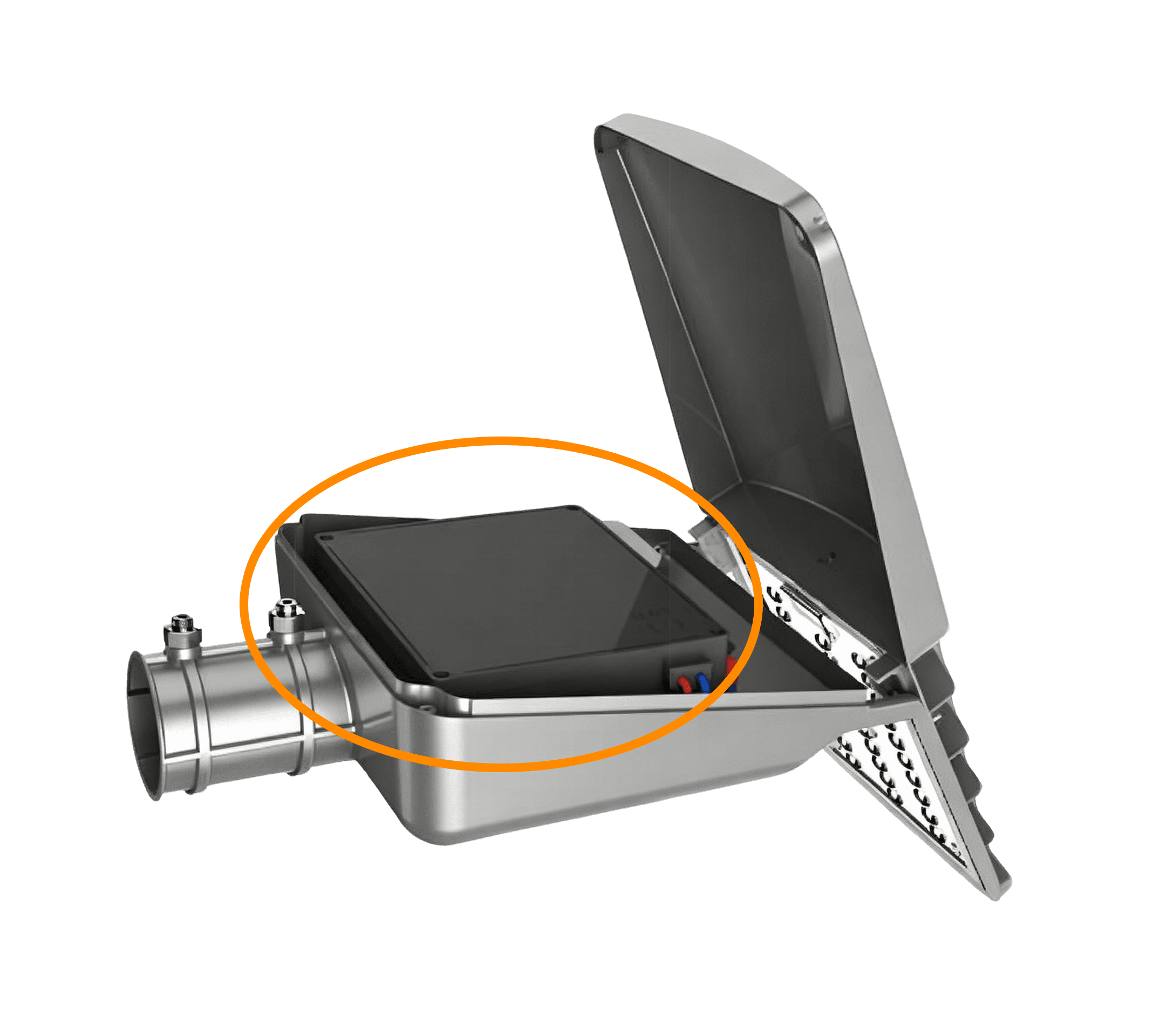

Grade A LiFePo4 Battery

Capacity is more than 80% after 2000 cycles.

Grade A lithium iron phosphate LiFePO4 battery inside solar street light, maintains over 80% capacity after 2000 charge cycles

Quick-release Buckle Design

Buckle-type design, can be opened and

closed quickly and easily, easy to install and maintain.

Quick-release metal buckle structure of solar street light housing, convenient fast opening for installation and maintenance

Time Control and Automatic Dimming

Smart time-based dimming for higher efficiency and longer lifespan.

12V/24V MPPT Controller

Intelligent to control the dimming by PIR/Motion sensor and timer.

10KV Surge & IP65 Heavy-Duty Protection

It features 10KV surge protection, IP65 waterproof & dustproof and IK08 impact resistance for reliable and safe use in harsh industrial environments.

High Efficiency Solar Panel

Adopting high efficiency monocrystalline silicon

solar panel, conversion rate is more than 21%.

Split design

Allows flexible installation and optimal positioning of both solar panel

and light for maximum efficiency and easier maintenance.

Grade A LiFePo4 Battery

Capacity is more than 80% after 2000 cycles.

Quick-release Buckle Design

Buckle-type design, can be opened and

closed quickly and easily, easy to install and maintain.

Time Control and Automatic Dimming

Smart time-based dimming for higher efficiency and longer lifespan.

12V/24V MPPT Controller

Intelligent to control the dimming by PIR/Motion sensor and timer.

10KV Surge & IP65 Heavy-Duty Protection

It features 10KV surge protection, IP65 waterproof & dustproof and IK08 impact resistance for reliable and safe use in harsh industrial environments.

High Efficiency Solar Panel

Adopting high efficiency monocrystalline silicon

solar panel, conversion rate is more than 21%.

Split design

Allows flexible installation and optimal positioning of both solar panel

and light for maximum efficiency and easier maintenance.

Grade A LiFePo4 Battery

Capacity is more than 80% after 2000 cycles.

Quick-release Buckle Design

Buckle-type design, can be opened and

closed quickly and easily, easy to install and maintain.

TECHNICAL PARAMETERS

Spec Sheet

Product Model	VenusII-30W	VenusII-40W	VenusII-60W	VenusII-80W	VenusII-100W
Wattage	30W	40W	60W	80W	100W
Input Voltage	DC12.8V	DC12.8V	DC12.8V	DC24V	DC24V
Battery Type	LiFePO4	LiFePO4	LiFePO4	LiFePO4	LiFePO4
Battery Capacity	12.8V/30AH	12.8V/30AH	12.8V/60AH	25.6V/42AH	25.6V/60AH
Solar Panel	Monocrystalline 18V 80W	Monocrystalline 18V 100W	Monocrystalline 18V 150W	Monocrystalline 36V 200W	Monocrystalline 36V 300W
Controller	MPPT	MPPT	MPPT	MPPT	MPPT
Luminous Efficacy	170lm/W	170lm/W	170lm/W	170lm/W	170lm/W
Luminous Flux	5100lm	6800lm	10200lm	13600lm	17000lm
CCT	3000K/4000K/5700K/6500K Options	3000K/4000K/5700K/6500K Options	3000K/4000K/5700K/6500K Options	3000K/4000K/5700K/6500K Options	3000K/4000K/5700K/6500K Options
CRI	Ra>70	Ra>70	Ra>70	Ra>70	Ra>70
Beam Angle	150° x 75°	150° x 75°	150° x 75°	150° x 75°	150° x 75°
Ingress Protection	IP65	IP65	IP65	IP65	IP65
Impact Resistance	IK08	IK08	IK08	IK08	IK08
Net Weight	3.5kg	5kg	14.8kg	18.4kg	20.1kg
Dimensions	540x229x108mm	540x229x108mm	745x332x182mm	910x332x182mm	910x332x182mm
